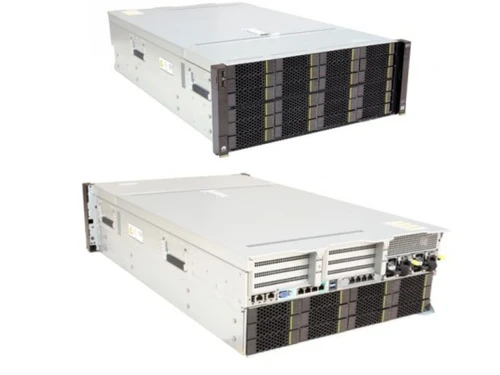

FusionServer Pro Rack Servers Pricing, Features & Reviews
FusionServer Pro 1288H V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 24 DDR4 DIMMs, up to 2933 MT/s; 12 DCPMMs, up to 2666 MT/s
» Up to 4 x 3.5'' drives or 8/10 x 2.5'' drives. The NVMe model supports 4/8 NVMe SSDs or
2 M.2 SSDs
» 5 PCIe 3.0 slots, supporting 2 single-slot HHHL GPUs
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 1288X V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 24 DDR4 DIMMs, up to 2933 MT/s
» Up to 8 x 2.5'' drives; 2 M.2 SSDs
» 5 PCIe 3.0 slots, supporting 2 single-slot HHHL GPUs
» 2 x GE LOM ports, supporting 2 x 25GE OCP2.0 NICs
FusionServer Pro 2288H V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 24 DDR4 DIMMs, up to 2933 MT/s; 12 DCPMMs, up to 2666 MT/s
» Up to 12/16/20 x 3.5'' drives or 8/24/25/31 x 2.5'' drives. The NVMe model supports
4–28 NVMe SSDs or 2 M.2 SSDs
» 10 PCIe slots, supporting 2 dual-slot FHFL GPUs
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 2288X V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 24 DDR4 DIMMs, up to 2933 MT/s; 12 DCPMMs, up to 2666 MT/s
» Supports up to 12/16 3.5'' drives or 8/24/25 2.5'' drives. The NVMe model supports 4 NVMe
SSDs or 2 M.2 SSDs
» 11 PCIe 3.0 slots for 8 HHHL GPUs or 2 FWFL GPUs
» 2 x 10GE and 2 x GE LOM ports, supporting 1 OCP2.0 NIC
FusionServer Pro 2298 V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 12 DDR4 DIMMs, up to 2933 MT/s
» 24 x 3.5'' drives, 4 x 2.5'' drives, and 4 NVMe SSDs
» Up to 5 PCIe expansion slots
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 5288 V5
» 1 or 2 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 24 DDR4 DIMMs, up to 2933 MT/s; 12 DCPMMs, up to 2666 MT/s
» 44 x 3.5'' drives and 4 x 2.5'' drives, and 8 NVMe SSDs and 2 M.2 SSDs
» Up to 10 PCIe expansion slots
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 2488 V5
» 2 or 4 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 32 DDR4 DIMMs, up to 2933 MT/s; 8 DCPMMs, up to 2666 MT/s
» Up to 25 x 2.5'' SAS/SATA drives. The NVMe model supports 8 NVMe SSDs or 2 M.2 SSDs
» 9 PCIe expansion slots
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 2488H V5
» 2 or 4 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 48 DDR4 DIMMs, up to 2933 MT/s; 24 DCPMMs, up to 2666 MT/s
» Up to 25 x 2.5'' SAS/SATA drives. The NVMe model supports 8 NVMe SSDs or 2 M.2 SSDs
» 11 PCIe expansion slots
» 2 x 10GE and 2 x GE LOM ports
FusionServer Pro 5885H V5
» 2 or 4 Intel® Xeon® Scalable processors (Skylake and Cascade Lake), up to 28 cores and
205 W per CPU
» 48 DDR4 DIMMs, up to 2933 MT/s; 24 DCPMMs, up to 2666 MT/s
» Up to 25 x 2.5'' SAS/SATA drives. The NVMe model supports 8 NVMe SSDs or 2 M.2 SSDs
» 15 PCIe expansion slots
» 2 x 10GE and 2 x GE LOM ports
